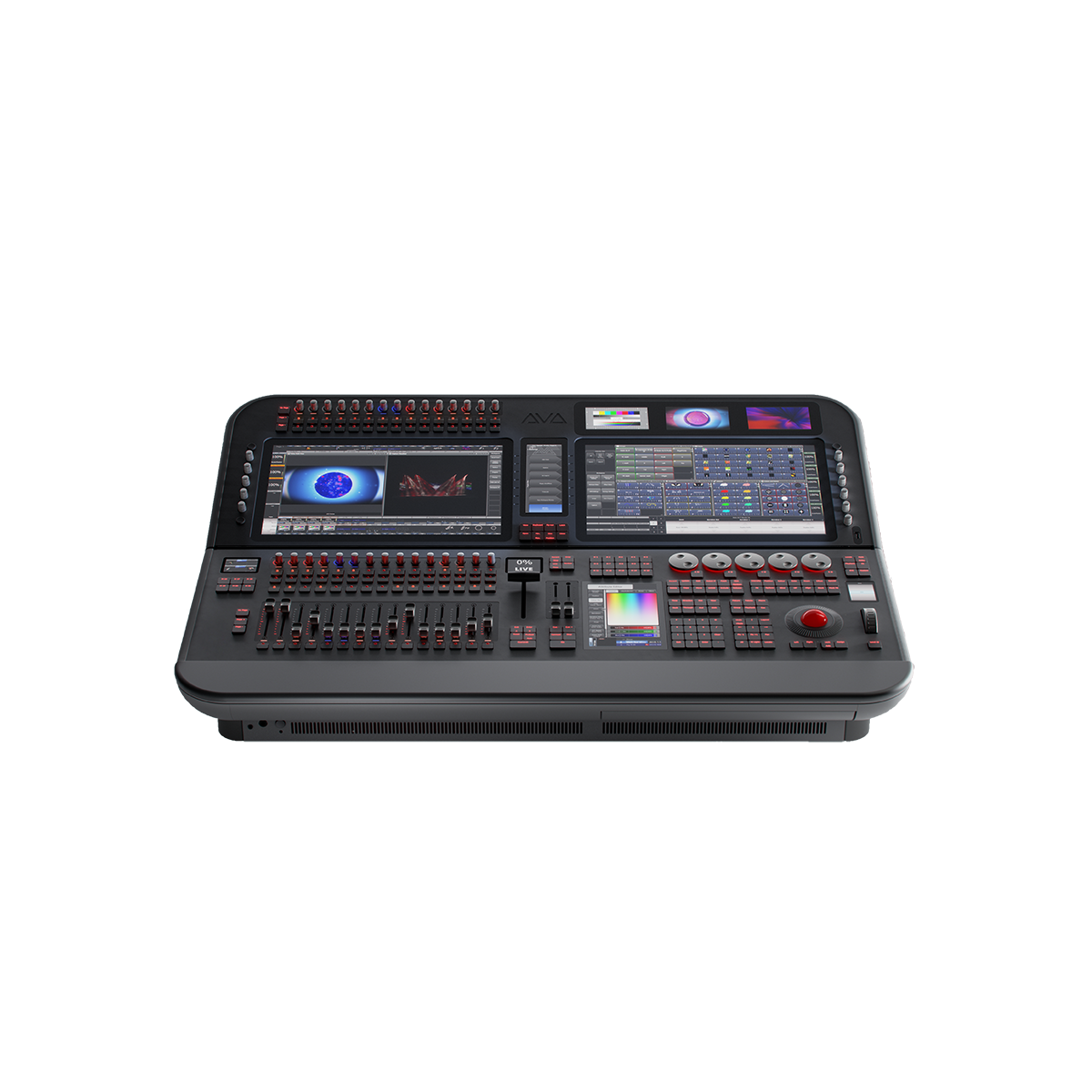

Our flagship console in a more compact 2 screen version
- 15 + 2 motorised touch-sensitive Penny & Giles faders – designer fader cap
- 40 Optical rotary assignable encoders with push function
- 2 x 15.6” 1000nits 1920*1080 capacitive touchscreens with adjustable brightness
- 3 x 4.3” 1000nits 800x480 preview touchscreens for media or workspaces
Diamond 9-215
Current Capabilities
- Universes
- Fibre Optic output
- Faders
Generative, animation-based pixel mapping
Quicksketch labelling for ultimate personalisation
Powerful multi-user networking with any Titan console
Create huge effects in seconds with Key Frame Shapes
Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
Expand DMX channel capacity with Titan Net Processors
Synergy-ready. Add any Ai product to unlock seamless video integration
Downloads
Technical Spec
15 + 2 motorised touch-sensitive Penny & Giles faders – designer fader cap
11-segment RGB LED level indicator alongside each fader
40 optical rotary touch sensitive playback encoders with push function - designer knob
Independent paging for each playback section
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches
Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
Supports two additional HDMI 1920*1080 touchscreens
Softkey menu touchscreen
5 custom RGB backlit optical attribute encoders
T-Bar with 5 control buttons and a colour LCD status screen
7” dual-touch high-brightness 800*1280 programming screen
Dedicated level wheel, machined aluminium with colour LCD status screen

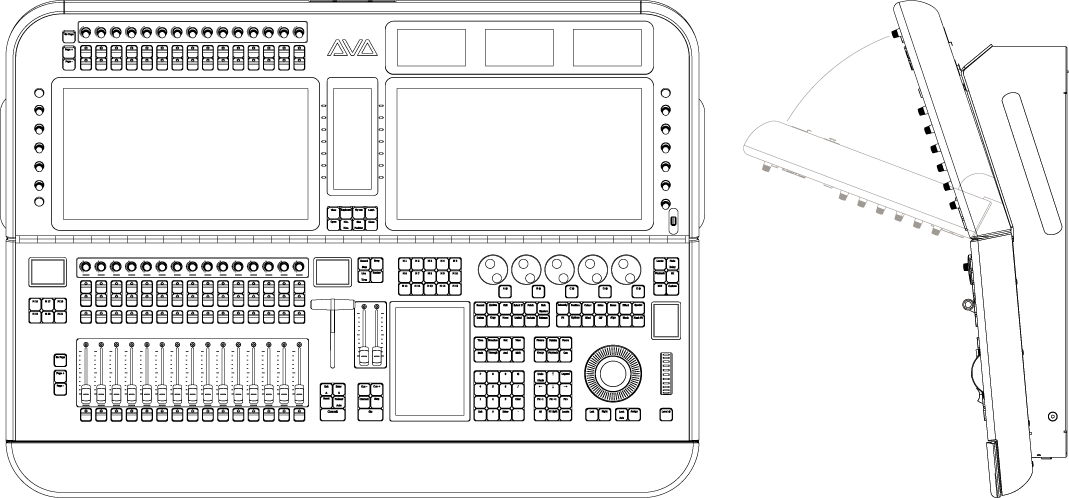

Weights and Dimensions
Weight: 54Kg / 120lbs
Dimensions: 995 x 640 x 455 mm(SCREENS UP),
995 x 705 x 240 mm (SCREENS DOWN)
39.2” x 25.2” x 17.9”(SCREENS UP),
39.2 ” x 27.8” x 9.5” (SCREENS DOWN)
In Flight Case
Weight: 88.5Kg / 195.1lbs
Dimensions: 1120 x 950 x 380 mm
