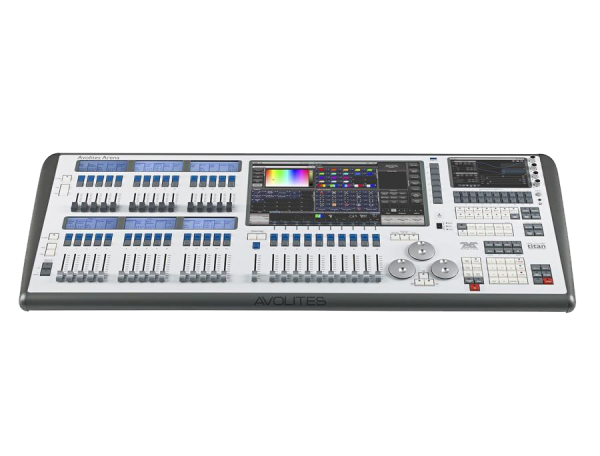

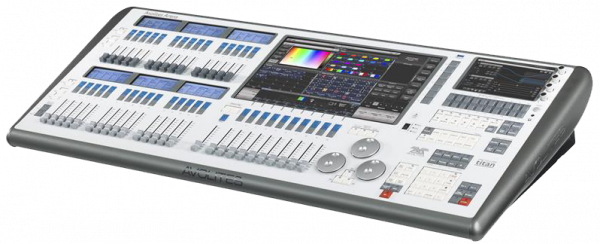

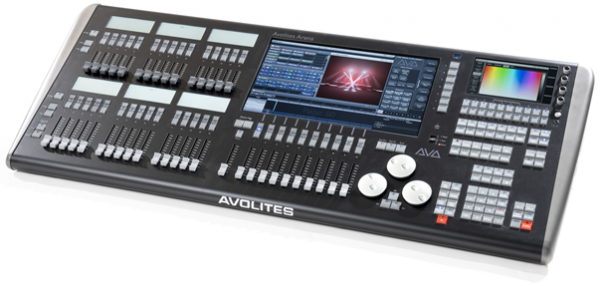

Arena

More live control than ever before...

  • Combines Titan's visual interface with a large control surface
  • Built-in network switch for ultimate connectivity
  • Super bright 15.6" main display, plus a second smaller touch screen provides additional workspace
  • 6 LCD screens ensure all playbacks are electronically labelled
Request a call
  • Overview
  • Software Features
  • In Focus
  • Technical Specs
  • Find Avolites
  • Contact Us
×
Purchase
this Setup

    There's currently no products added to this section of your setup. Please select a product below.

    Arena

    Current Capabilities

    • Universes
    • Fibre Optic output
    • Faders

    Complete control with
our Titan Software

    Just some of the innovative features

    Generative, animation-based pixel mapping

    Quicksketch labelling for ultimate personalisation

    Powerful multi-user networking with any Titan console

    Create huge effects in seconds with Key Frame Shapes

    Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more

    Expand DMX channel capacity with Titan Net Processors

    Synergy-ready. Add any Ai product to unlock seamless video integration

    The second screen really comes into its own, especially with the encoder pots. I used them to do rate masters as well as tap tempo, and they were brilliant. People will find ways to use those that Avo never thought of!

    Huw Llewellyn
    Chief LD, The National Theatre

    Arena in focus

    • Misfits Walk Among Us Again With Avolites Arena

      Those fans lucky enough to see horror-punk pioneers Misfits on their sporadic 2019 US tour not only get to see a band that literally invented an entire genre in 1977, they also get to check out a plethora of “rad tricks” from the lighting and video toolbox of Lighting Director Jon Eddy, who is serving up his visual magic on an Avolites Arena console supplied by Delicate Productions.

      The term “pioneers” is not an exaggeration. Without Misfits, there would be no Rob...

      Read full case study

      Press Release

      Misfits Walk Among Us Again With Avolites Arena

      Those...

      Learn More

    • A Glastonbury First – Synergy Makes its Festival Debut

      The Temple is a haven for late- night ravers at Glastonbury with a range of big name performers and DJs gracing it’s stage. It’s not just the music and the eclectic atmosphere that makes Temple so special; since its launch in 2017 the face of the Temple has become the centre of attention with a stunning range of visuals bringing it to life every night thanks to the creative minds of the production team.

      The team comprised of Paul de Villiers as the lighting designer, Arran Rothwell-Eyre taking care of the media servers and a team from Limbic Cinema curating...

      Read full case study

      News

      A Glastonbury First – Synergy Makes its Festival Debut

      The Temple is a haven for late- night ravers at Glastonbury with a range of big name performers and...

      Learn More

    • Studio Tanta Install Avolites Arena

      Avolites Arena console was adopted by Studio Tanta, the largest scale studio in Tokyo, Japan, which opened in Shibuya district in May 2018.

      The Avolites Arena console was installed at Rehearsal Studio, Studio-C, .

      The studio is a 7- storey building housing two recording studios, one rehearsal studio, two artists’ rooms, a restaurant and more.  It took 2 years to get building permission and another 3 years for the construction itself.

      Studio Tanta serves various purposes, including live concerts, rehearsals, recording studio space, parties, events and so on.

      Hibino Lighting Inc. Avolites’ exclusive distributor in Japan, supplied the Arena to control the 30 units...

      Read full case study

      News

      Studio Tanta Install Avolites Arena

      Avolites Arena console was adopted by Studio Tanta, the largest scale studio in Tokyo, Japan, which opened in Shibuya...

      Learn More

    • Avolites Arena is rock solid for Angus & Julia Stone at Somerset House

      UK – Interest surrounding Avolites’ newest lighting console, the live control focused Arena, has been gathering momentum after a number of festival appearances, including at Somerset House’s Summer Series for acts including Angus & Julia Stone.

      Set in one of London’s most iconic landmarks, Summer Series featured a diverse and impressive line-up of headline artists alongside hotly tipped emerging acts. As house desk for the 11-day series of performances, Arena was used by the likes of folk duo Angus & Julia Stone LD Toby Hoggarth, while George Ezra, lit by John Barker, also employed an Avolites set-up.

      The Arena combines the popular...

      Read full case study

      Case Study

      Avolites Arena is rock solid for Angus & Julia Stone at Somerset House

      UK – Interest surrounding Avolites’ newest lighting console, the live control focused Arena, has been gathering momentum after a number...

      Learn More

    Technical Specs

    The details

    Downloads

    Name Description Last Modified Size Download
    NameArena - Spec Sheet Description Last Modified Size Download Download

    Technical Spec

    40 electronically-labelled playback faders

    15.6" main touch screen

    7" secondary touchscreen

    20 macro / executor buttons

    3 optical attribute encoders

    4 optical playback pots

    UPS battery backup

    Built-in 4-port managed gigabit network switch

    Ethercon for all ethernet connections

    OpticalCon stage link output

    16 universes of ArtNet or S-ACN, expandable with Titan Net Processors

    8 Physical DMX outputs on 5-pin XLR

    Weights and Dimensions

    Weights: Console Only 23Kg, console in flight case 44Kg
