Synergy

Published on: 22/07/19

  • News
  • Synergy

Synergy brings lighting and video together like never before, offering creative programmers a streamlined workflow for all the visual elements on their stage. It is a proprietary connection between any Titan lighting console and any Synergy compatible device such as Ai or Prism, offering better reliability, flexibility and extended programming abilities, all within an intuitive interface. Synergy unlocks the power of video and lighting allowing them to be used interchangeably.

Synergy product video

What you need for a Synergy system, the features and the creative benefits.

Synergy Video

Flexible and Reliable Connection

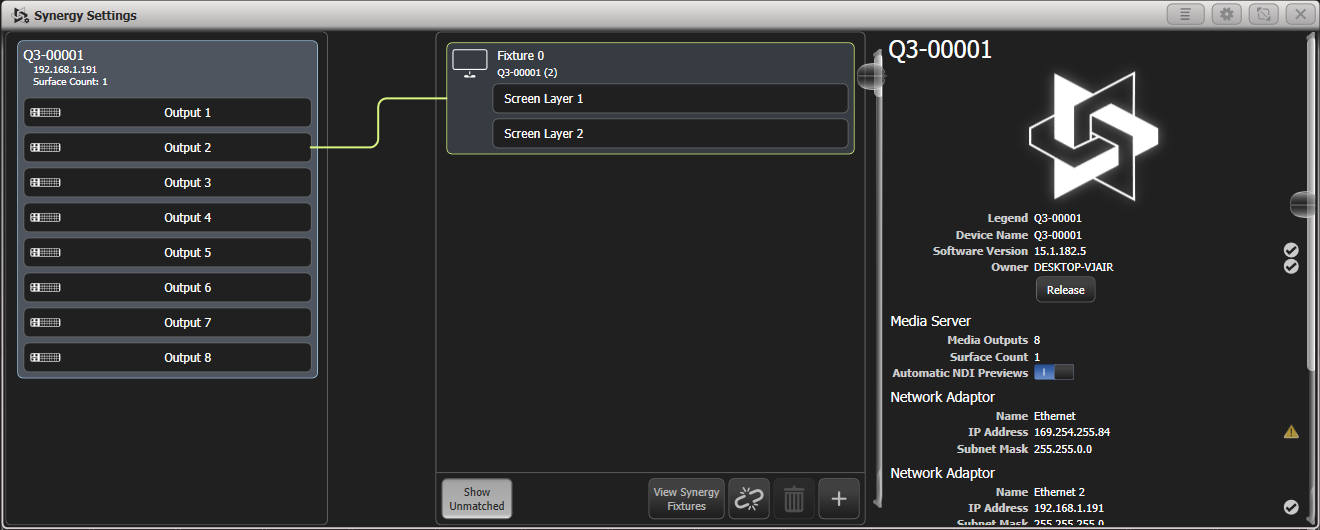

We have replaced the previous DMX and CITP connection with our proprietary protocol, Titan Net. This allows for fully bi-directional communication, and great reliability.  All within a clear and intuitive graphical Synergy Settings UI.

Pull video surfaces already created in any Synergy compatible software into the control of the console at the touch of a button.  Create new video screen surfaces and layers in Ai or Prism from the Titan interface and control them instantly from the console.



Attribute Control Built Around Media

Custom controls for media within the Titan Attribute Editor help to manage control of channels when programming video.  Thumbnails and effect parameter names are transferred to the console via Titan Net and refreshed automatically as content is added.

Avolites attribute editor
Titan attribute editor with thumbnails



Titan Media Control Workspace

The media control workspace provides easy access and control of the playmodes, in and out points, playback speed and timecode controls for any attached Synergy device.

Avolites Media control

Video Multi-View

Bringing video into the console world effortlessly, Video Multi-View shows up to 6 different streams simultaneously for layer previews and screen fixture outputs.

4 screen multi view
Titan Synergy video multi-view



Media Browser

In many shows, the media servers are often not with you at front of house.  Upload content from your console at FOH to any connected Synergy device. Browse to the content on a USB stick, choose the Synergy device and destination to upload to and the content is transferred via the network to the Synergy device, and queued or transcoded to AiM automatically as needed.

Media selection and destination screen
Synergy media upload in progress



Pixel Mapping to Any Group of Fixtures

Using the already highly powerful Titan Pixel Mapper, a new ‘Synergy’ element has been added. This allows video from any screen fixture in the connected servers to be mapped across any group of colour mixing fixtures. There are colour correction sliders available to adjust the output of LED fixtures to match screens, and the system offers smooth fading from video-source cues to traditional lighting cues.

v12 Pixel mapper interface



Powerful Layout Tools

Creating layouts for complex LED fixtures is simple in Titan, as all the information about positioning of cells and channel offsets is contained within the personality file. Video content can also be shown on the layout editor to assist with mapping.

Avolites fixture layout
Titan Layout editor with Synergy video overlay



Professional Video, Professionally Integrated

Some other consoles come with basic media players which can map video to DMX fixtures, but you wouldn’t use these to play video to LED screen or projectors for a real show, so the aim of unifying lights and video isn’t really met. Media servers can also pixel map to fixtures but creating the layouts and working out the correct DMX channels involves a lot of time and number crunching.

Capture Avolites visualised
Video and lighting Synergy visualised

Explore more News

Announcement

06/01/20

Avolites Releases Groundbreaking Synergy Software

Avolites release their highly anticipated new software that integrates lighting control with video display...

Read more

News

06/01/20

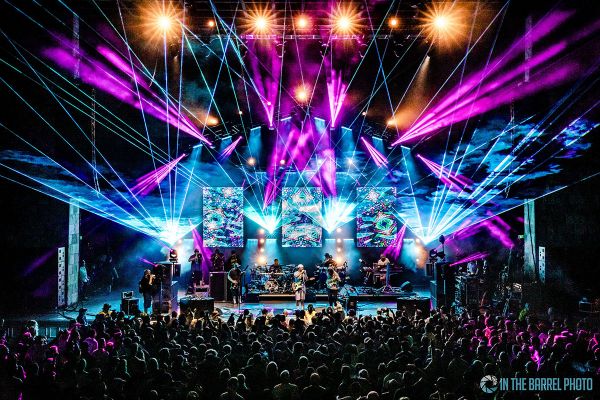

Avolites is the Brilliant Choice for Slightly Stoopid Tour

Pulse Lighting supplies Sapphire Touch lighting control console paired with new Synergy and Ai...

Read more

News

06/01/20

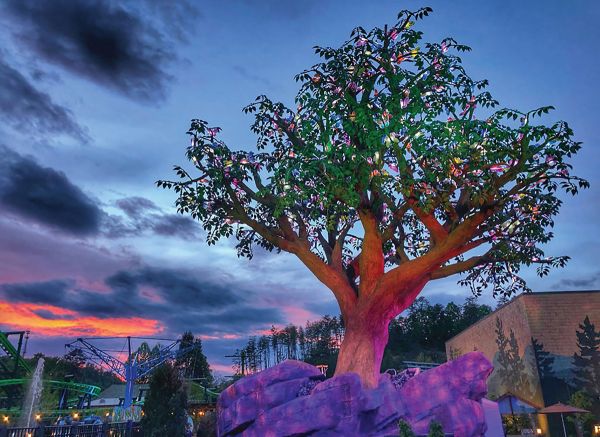

WEIGL and Avolites Collaborate on Dollywood’s Wildwood Grove Installation
