Sapphire Touch

The performance space you need to manage lighting, video and on-the-night changes

  • 45 Motorised faders
  • 2 responsive, high-brightness touchscreens
  • Integrated UPS
Request a call
  • Overview
  • Software Features
  • In Focus
  • Technical Specs
  • Find Avolites
  • Contact Us
×
Purchase
this Setup

    There's currently no products added to this section of your setup. Please select a product below.

    Sapphire Touch

    Current Capabilities

    • Universes
    • Fibre Optic output
    • Faders

    Generative, animation-based pixel mapping

    Quicksketch labelling for ultimate personalisation

    Powerful multi-user networking with any Titan console

    Create huge effects in seconds with Key Frame Shapes

    Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more

    Expand DMX channel capacity with Titan Net Processors

    Synergy-ready. Add any Ai product to unlock seamless video integration

    I absolutely love the console. The set list function puts the playbacks I need at my fingertips and I love how exact and sensitive the touch screens are

    Jeff Maker
    LD, All Time Low

    • 30 Seconds To Mars Enter a New Age with Avolites

      Over the summer, 30 Seconds to Mars headed out on an ambitious festival run across Europe, covering 16 countries with audiences of over 40,000 people as well as 2 shows on a private Croatian Island for a “Mars Island” experience. Ensuring the band’s vision became a reality was experienced production designer Tom Campbell of MIRRAD with his Avolites Sapphire Touch and Q3 Media Server.

      The design theme took inspiration from the artist James Turrell (both Campbell and Jared Leto are fans of...

      Read full case study

      News

      30 Seconds To Mars Enter a New Age with Avolites

      Over...

      Learn More

    • Avolites is the Brilliant Choice for Slightly Stoopid Tour

      If there were an award given to the band combining the most eclectic mix of musical genres, San Diego’s Slightly Stoopid would be an ideal contender for the prize. Blending a fusion of folk, rock, reggae, dub and blues with hip-hop, funk, psychedelic, metal and punk, Slightly Stoopid has steadily grown its devoted fan base since Sublime frontman Bradley Nowell signed the group to his Skunk Records label in the mid-’90s. Celebrated for its relentless touring and engaging live shows, the...

      Read full case study

      News

      Avolites is the Brilliant Choice for Slightly Stoopid Tour

      If...

      Learn More

    • Maggie Rogers Shines Brightly With Sapphire Touches

      A lot has happened in Maggie Rogers’ world since 2016, when a video of her demoing a then-newly-recorded song, “Alaska,” for Pharrell Williams at NYU went viral. Following opening slots on major tours with both HAIM and Mumford & Sons last year, Rogers dropped her own major label debut, Heard in a Past Life, this past January, which charted in the second highest slot of the Billboard 200. Consequently, the artist has spent much of 2019 on the road in support...

      Read full case study

      News

      Maggie Rogers Shines Brightly With Sapphire Touches

      A...

      Learn More

    • Avolites Helps Puts the Showtime Sizzle into MLB’s 90th Annual All-Star Game

      CLEVELAND, Ohio – August 2019 — Aspiring baseball players call the major leagues “the show,” but in recent years all sports have incorporated more entertainment elements as games, and even former backroom transactions like player drafts, have been transformed into full-fledged events. Major League Baseball’s 90th Annual All-Star Game, recently held at Cleveland’s Progressive Field on July 9, is a perfect example of this shift. Adding to the high-production ambience was Greensboro, North Carolina-based SE Systems, which provided lighting and audio...

      Read full case study

      News

      Avolites Helps Puts the Showtime Sizzle into MLB’s 90th Annual All-Star Game

      CLEVELAND,...

      Learn More

    Technical spec

    Those all-important details

    Downloads

    Name Description Last Modified Size Download
    NameSapphire Touch - Spec Sheet Description Last Modified Size Download Download

    Technical Spec

    45 motorised and touch-sensitive faders

    2 super-bright 15.6" touchscreens

    3 back-lit optical attribute encoders

    RGB trackball for mouse and attribute control

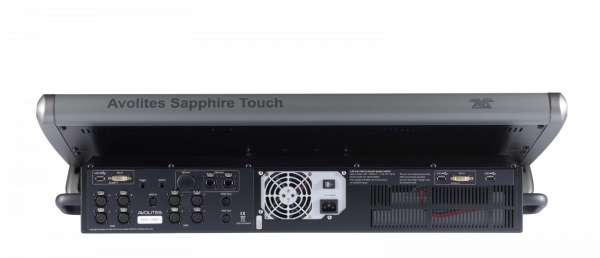

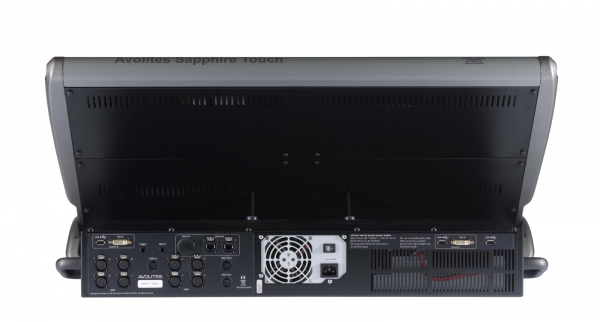

    2 independent Ethercon network ports

    UPS power backup built in

    Articulating top panel for the perfect screen angle

    Perfect control surface for Synergy

    2 x DVI external screen outputs

    Leather armrest with soft-close compartment

    2 x USB ports inside armrest, 4 x USB on the rear panel

    8 Physical DMX outputs

    Weights and Dimensions

    Console Only (closed) Console in Flight Case Console packed in Flight Case
    Dimensions (mm) 884 x 720 x 218 1000 x 970 x 370 1010 x 1000 x 850
    Weight 46Kg 86.35Kg 88.45Kg

    Sapphire Touch plan dimensionsSapphire Touch dimensions
