Quartz

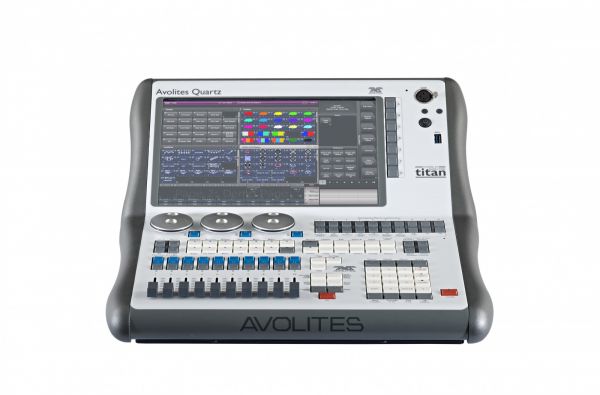

The Quartz is our smallest all-in-one console, with high quality hardware and an ultra bright touchscreen in a compact size that's perfect for life on the road.

  • 16 Universes of DMX from the console
  • Expandable with Titan Net Processor up to 64 universes
  • 10 precision playback faders
  • 12.1" angled touch screen with brightness control
Request a call
  • Overview
  • Software Features
  • In Focus
  • Technical Specs
  • Find Avolites
  • Contact Us
×
Purchase
this Setup

    There's currently no products added to this section of your setup. Please select a product below.

    Quartz

    Current Capabilities

    • Universes
    • Fibre Optic output
    • Faders

    Generative, animation-based pixel mapping

    Quicksketch labelling for ultimate personalisation

    Powerful multi-user networking with any Titan console

    Create huge effects in seconds with Key Frame Shapes

    Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more

    Expand DMX channel capacity with Titan Net Processors

    Synergy-ready. Add any Ai product to unlock seamless video integration

    "The Quartz punches well above its weight, handling big shows with ease. The travel case means it comes with me all over the world"

    Tom Campbell
    LD, John Grant, The Amazons, 30 seconds to Mars

    • Avolites Helps Puts the Showtime Sizzle into MLB’s 90th Annual All-Star Game

      CLEVELAND, Ohio – August 2019 — Aspiring baseball players call the major leagues “the show,” but in recent years all sports have incorporated more entertainment elements as games, and even former backroom transactions like player drafts, have been transformed into full-fledged events. Major League Baseball’s 90th Annual All-Star Game, recently held at Cleveland’s Progressive Field on July 9, is a perfect example of this shift. Adding to the high-production ambience was Greensboro, North Carolina-based SE Systems, which provided lighting and audio...

      Read full case study

      News

      Avolites Helps Puts the Showtime Sizzle into MLB’s 90th Annual All-Star Game

      CLEVELAND,...

      Learn More

    • Avolites Quartz Lights Up Lululemon's Shanghai Catwalk

      Lululemon held a spectacular catwalk in Shanghai’s Intercontinental Wonderland Hotel and was lit by 280 LED Par, 40 internal Blade Fixtures, 120 Beams all powered by the Avolites Quartz.

      Stage Director Wang Zhe from W-Production and Lighting Designer Li Xiao Wei took care of the production and produced stunning looks across the venue.

      <a...
      Read full case study

      News

      Avolites Quartz Lights Up Lululemon's Shanghai Catwalk

      Lululemon held a spectacular catwalk in Shanghai’s Intercontinental Wonderland Hotel and was lit by 280 LED Par, 40 internal Blade Fixtures, 120...

      Learn More

    Technical Specification

    Downloads

    Name Description Last Modified Size Download
    NameQuartz - Spec Sheet Description Last Modified Size Download Download

    Technical Spec

    16 universes of DMX from the console

    Expandable to 64 universes with Titan Net Processor

    Gigabit network port for Titan Net, Artnet and streaming ACN

    Expandable with Titan Mobile Wing through dedicated USB port

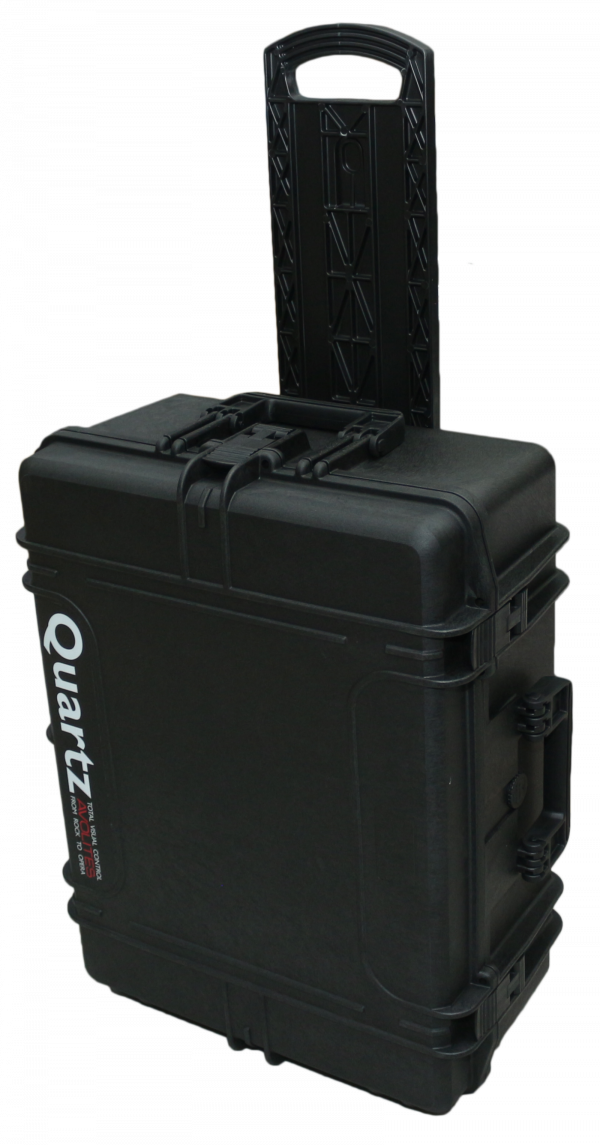

    Travel case has space for console plus fader wing

    Built in MIDI input

    Vibrant 12.1" angled touch sreen with brightness control

    DVI-D for external display

    Weights and Dimensions

    Dimensions Console only (mm):  425 x 466 x 194     Weight: 8Kg

    Dimensions Console in flight case (mm): 520 x 480 x 300    Weight: 15.65Kg

    Dimensions Console in travel case (mm) 700 x 540 x 310    Weight: 21.95Kg
