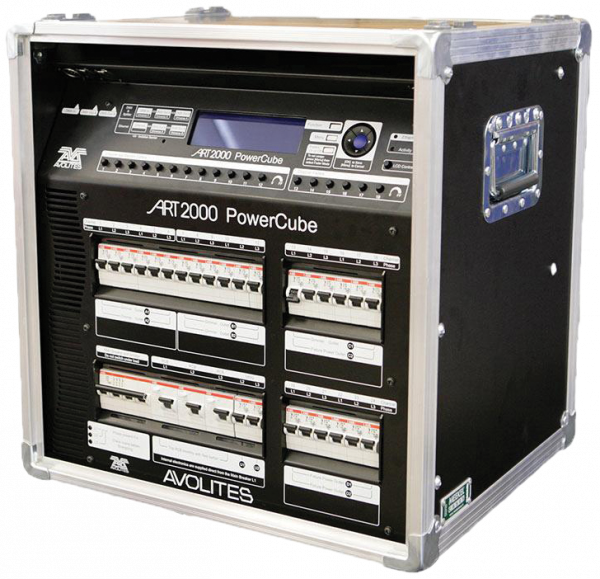

A complete Dimming, Mains and Data Distribution Solution in one compact box!
- 12 dimmer circuits at 10A
- 6 combined dimmer/fixed mains at 10A
- 6 fixed mains at 16A
- Custom flight case for portability
- Fibre Optic output
Dimmer and distribution channels- 10A C type ABB breakers
Captive Mains tail of 1.2m H07R 5x 10mm2 fitted with a 63A 5 pin Cee connector
Mains supplies either 63A 3phase+N TN-S or 63A single Phase +N
Mains inlet breaker 63A D type ABB breakers (10-15x I nominal inrush current)
Three individual single phase 63A 30mA residual current breakers to protect operators.

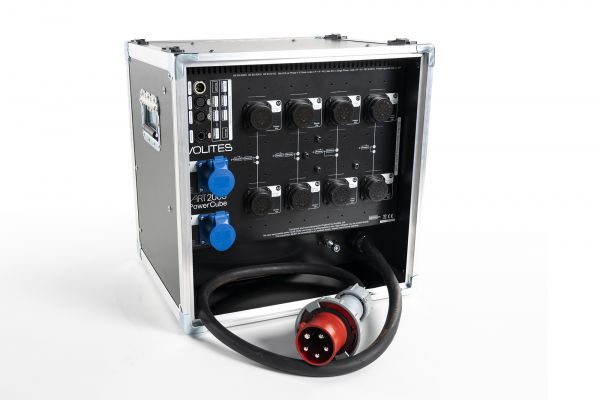

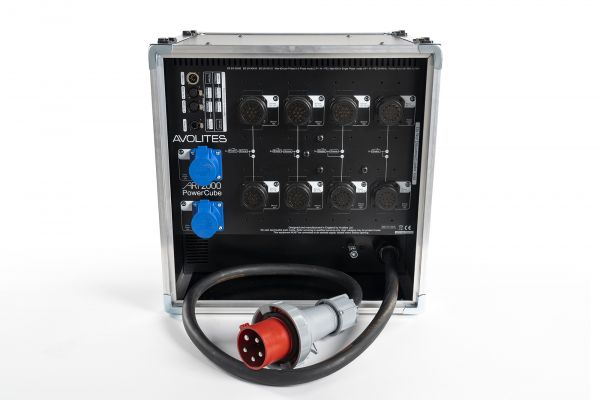

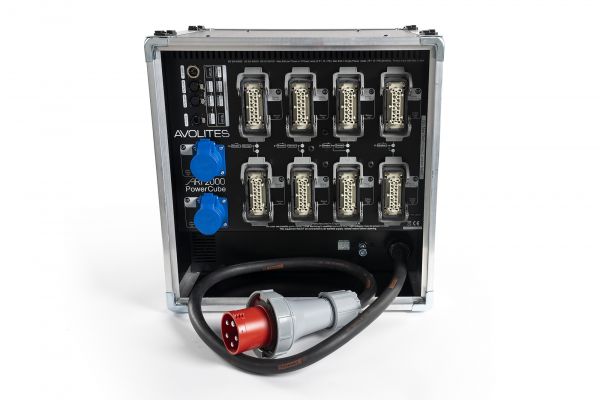

Socapex or Harting output connectors available
Weights and Dimensions
|Dimensions: 445mm x 510mm x 520mm|
Net Weight: 43Kg
