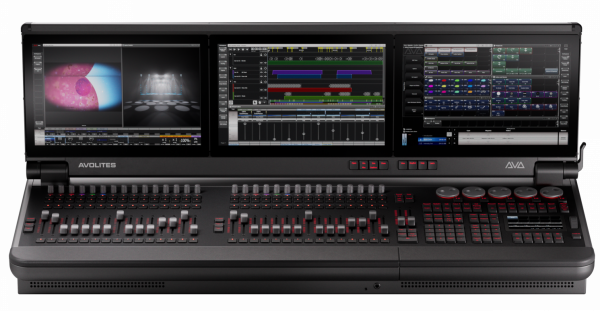

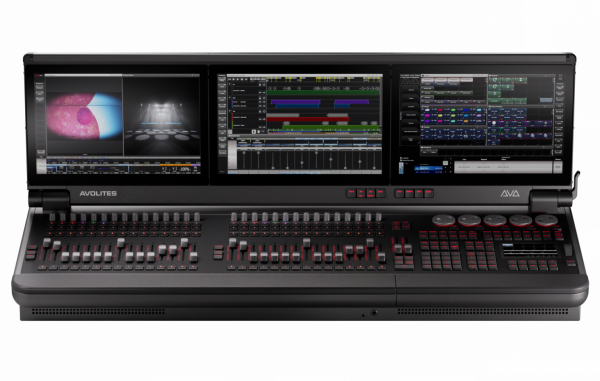

New D7-330

The latest in the Diamond collection of consoles

  • 30 motorised playback faders, 30 ultra-high resolution touch sensitive playback encoders with push function
  • 3 x 14” capacitive touchscreens with adjustable brightness
  • Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
  • Fits into a custom Peli-Air Case 1745
Discover more
  • Overview
  • Software Features
  • In Focus
  • Technical Specs
  • Find Avolites
  • Contact Us
×
Purchase
this Setup

    There's currently no products added to this section of your setup. Please select a product below.

    Diamond 7-330

    Current Capabilities

    • Universes
    • Fibre Optic output
    • Faders

    Generative, animation-based pixel mapping

    Quicksketch labelling for ultimate personalisation

    Powerful multi-user networking with any Titan console

    Create huge effects in seconds with Key Frame Shapes

    Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more

    Expand DMX channel capacity with Titan Net Processors

    Synergy-ready. Add any Ai product to unlock seamless video integration

    • Avolites lights the way at PLASA London Show with its new Diamond 7 console

      The new D7-330 and D7-215 make their UK debut at the PLASA Show this year.

      London, United Kingdom, 30th August 2024 – Avolites Ltd plans the UK debut of the Diamond 7 (D7), the newest addition to the Diamond collection of consoles, at this year’s London PLASA show on stand C28 within the Robe village. Two variants, D7-330 and D7-215, positioned as the ultimate travel and performance console, that can be packed in a standard Peli Air case and checked in as hold luggage to fly anywhere with you, will be on the Avolites stand for demonstration.

      <img...

      Read full case study

      News

      Avolites lights the way at PLASA London Show with its new Diamond 7 console

      The new D7-330 and D7-215 make their UK debut at the PLASA Show this year.

      London,...

      Learn More

    • Avolites D7 Lighting Console Makes an Impression

      All eyes were on the new Avolites Diamond 7 (D7) lighting console at the recent Prolight+Sound expo in Frankfurt – a powerful, flexible, and highly portable control solution for lighting at shows, concerts, and live events.

      The much-anticipated D7 was shown publicly for the first time with two variants on the stand – the D7-215 and the D7-330 – both running on Avolites latest Titan v17 software.

      This initial product launch has enabled the Avolites team to gauge reactions and glean...

      Read full case study

      Press Release

      Avolites D7 Lighting Console Makes an Impression

      <img decoding="async" class="aligncenter size-full wp-image-46701" src="https://www.avolites.com/app/uploads/2024/03/avolites_meteor_still4-1.jpg" alt="" width="1600" height="800" srcset="https://www.avolites.com/app/uploads/2024/03/avolites_meteor_still4-1.jpg 1600w, https://www.avolites.com/app/uploads/2024/03/avolites_meteor_still4-1-768x384.jpg 768w, https://www.avolites.com/app/uploads/2024/03/avolites_meteor_still4-1-1536x768.jpg 1536w" sizes="(max-width: 1600px) 100vw,...

      Learn More

    Downloads

    Name Description Last Modified Size Download
    NameDiamond 7-330 Data Sheet Description Last Modified Size Download Download

    Technical Spec

    30 Motorised touch-sensitive faders, with designer fader cap and RGB fader indicator

    Dual, motorised, touch-sensitive, master cue list fader with 9 control buttons

    30 Ultra-high resolution touch sensitive playback encoders with push function, plus 5 custom RGB backlit attribute encoders

    120 C&K playback function buttons with positive haptics for timing, designer button cap

    3 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness

    1 x 4.3” 850 nits 800 x 480 capacitive touch macro and workspace screen with adjustable brightness

    Full custom backlit QWERTY keyboard in drawer

    Dedicated level wheel and onscreen level indication

    LED desk reading light in panel above screens and over rear panel

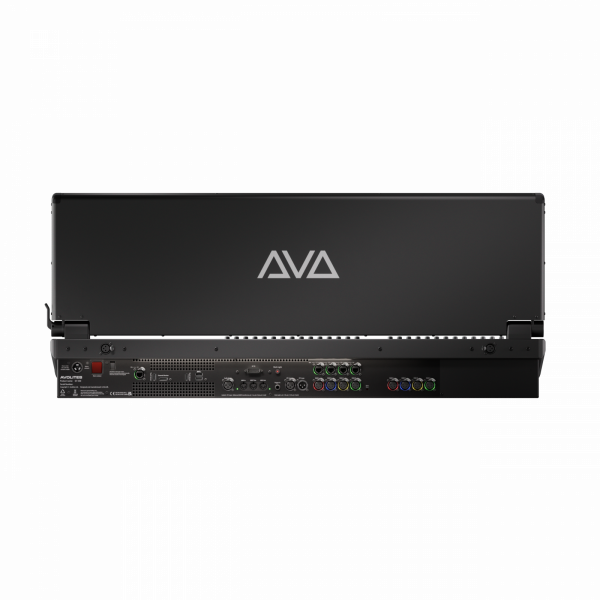

    8 X Neutrik 5-pin XLR , optically and galvancially isoclated with halo assignement indicators

    4 x Neutrik XLR on primary network port, 1 x Neutrik XLR on secondary network port, internally switched and managed

    SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation

    GPIO with 4 inputs and 4 outputs on 15 Pin D sub connector

    Supports 1 x additional external DisplayPort 1920*1080 touchscreens

    Weights and Dimensions

    UNIT DIMENSIONS
    (W X D X H)

    • 100 x 36 x 42 cm (Screens unfold)
    • 100 x 36 x 18 cm (Screens folded)



    WEIGHT:

    • 24.5 KG / 54 LBS
