D3-110

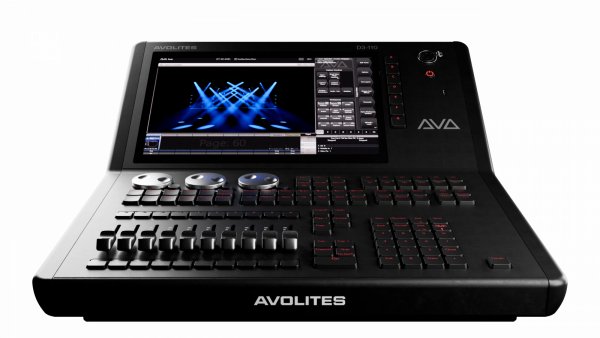

Compact 24U Titan console with touchscreen
- Standalone lighting control console with Titan processor
- Supports 24 DMX universes natively
- 10 playback faders, 3 encoder wheels, 12 macro buttons and features Avolites’ Compact key layout
- Mixture of USB C and A ports
Control 24 universes from a neat, lightweight console.
With a built-in touchscreen and more processing power, D3-110 is ready for bigger shows and tighter schedules. Powered by Titan, it supports 24 universes in a compact, self-contained design that fits into any tour, install or rental fleet. Tough, reliable and fully featured, D3-110 delivers high-end control in a neat package.
Avolites Titan & Capture Engine
24 Universes (12,288 channels)
Unlimited Fixtures
TitanNet Multi-Console session
Streaming ACN
Art-Net & Art-RDM
CITP
SMPTE LTC
Downloads
| Name | Description | Last Modified | Size | Download |
|---|---|---|---|---|
| NameD3-110 datasheet (v1) | Description | Last Modified | Size | Download Download |
Technical Spec
1x 12.1", 800nit (cd/m2), WXGA capacitive mutli-touch internal screen with adjustable brightness
1x optional up to 4K (UHD) external screen (DisplayPort)
Compact layout (reduced version of D7 & D9 layouts)
10x 60mm playback faders
20x C&K flash buttons with custom cap
76x backlit Cherry MX Low Profile programming / setup keys
3x backlit Cherry MX Low Profile playback paging keys
5x backlit Cherry MX Low Profile playback control keys, incl. double-width Go key
12x backlit Cherry MX Low Profile macro/executor keys
3x high resolution, metal Avo attribute encoders with select buttons
Support for D3 Wing, T3 Wing, or Titan Mobile Wing
Support for unlimited D3 Touch
iOS & Android mobile app ("Titan Remote")

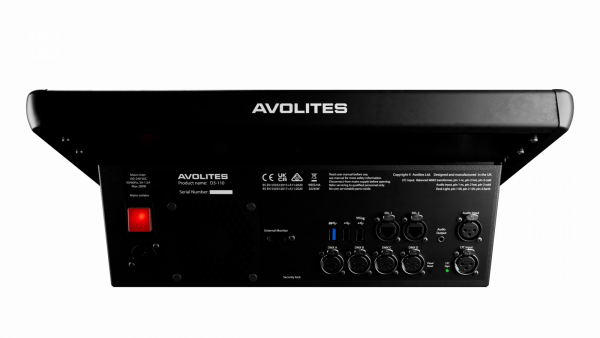

4x DMX ports (Neutrik 5-pin XLR)
2x EtherCON (Gigabit Ethernet)
1x SMPTE LTC port (Neutrik 3-pin XLR)
1x Audio Input port (Neutrik 3-pin XLR)
1x Audio Output port (6.35 mm (1⁄4”) jack)
12V optional Gooseneck
Kensington Security Lock
Weights and Dimensions
DIMENSIONS (W x D x H): 423 x 468 x 202 mm
WEIGHT: 8.7 kg
PACKAGED DIMENSIONS (W x D x H): TBC
PACKAGED WEIGHT: TBC
PACKAGING: Cardboard
