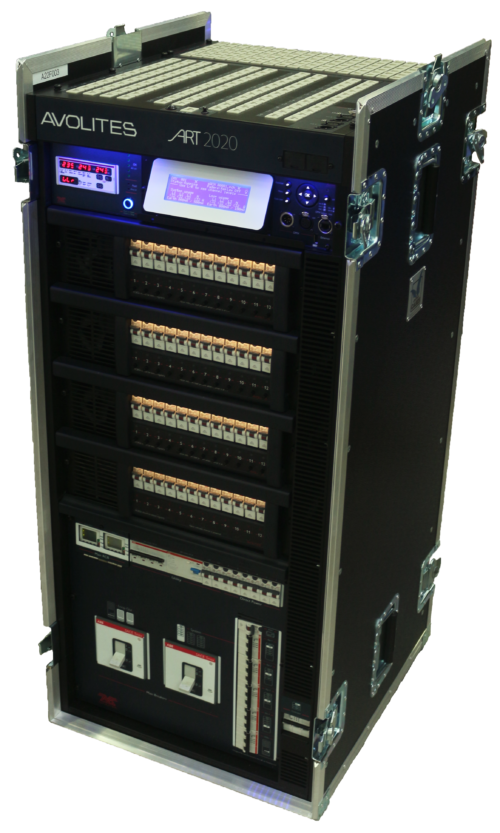

ART 2020

The latest evolution of the industry's favourite dimming and power distribution system

  • 48 RCBO-protected channels
  • 4-bay modular system with Dimming, Distribution and Flex options
  • S-ACN and Art-Net in addition to DMX control
  • Configure threshold and delay on main and loop breakers
Request a call
  • Overview
  • Software Features
  • Technical Specs
  • Find Avolites
  • Contact Us
×
Purchase
this Setup

    There's currently no products added to this section of your setup. Please select a product below.

    ART 2020

    Current Capabilities

    • Universes
    • Fibre Optic output
    • Faders

    ART 2020

    Key features

    Designed with contributions from leading industry users, and 40 years of dimming experience

    Removes the need for separate mains distribution and DMX splitters

    User-exchangeable modules for dimming, distribution, remote switched power or Flex

    Configurable main input and loop out breakers offer variable over-current, earth-leakage and trip time, preventing large-scale outages during live performances

    Test connected mains before the system energises. Over-voltage or missing neutral will not allow the system to energize

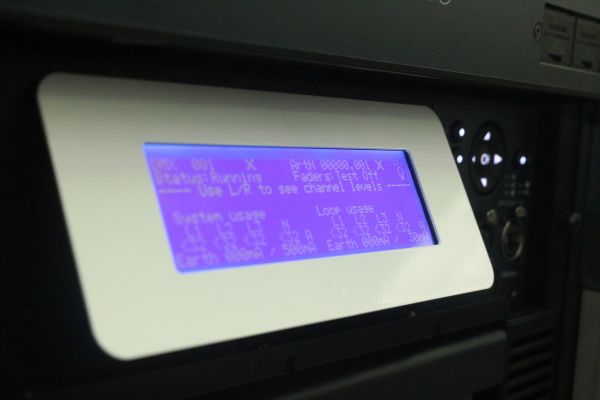

    Controller displays: Per phase current, neutral current, earth leakage for both the system and loop out

    Digital meter displays Var and Powerfactor, important variables when working with generators

    Wieland ST-17 (2-pin) or ST-18 (3-pin) patch system fitted offering 120 outlet circuits from the 48 channels via Socapex or Harting multi-core connectors

    Configurable rack lighting provides convenient illumination of all controls and connectors, as well as drawing attention to faults

    Control via 5-pin XLR DMX, Art-Net or S-ACN

    "The ART 2020 is the next step in a line of fantastic, ultra-reliable dimming from Avolites. Ours are never in the warehouse!"

    Calder Sibbald
    MD, Blacklight Ltd.

    Technical Spec

    The details

    Technical Spec

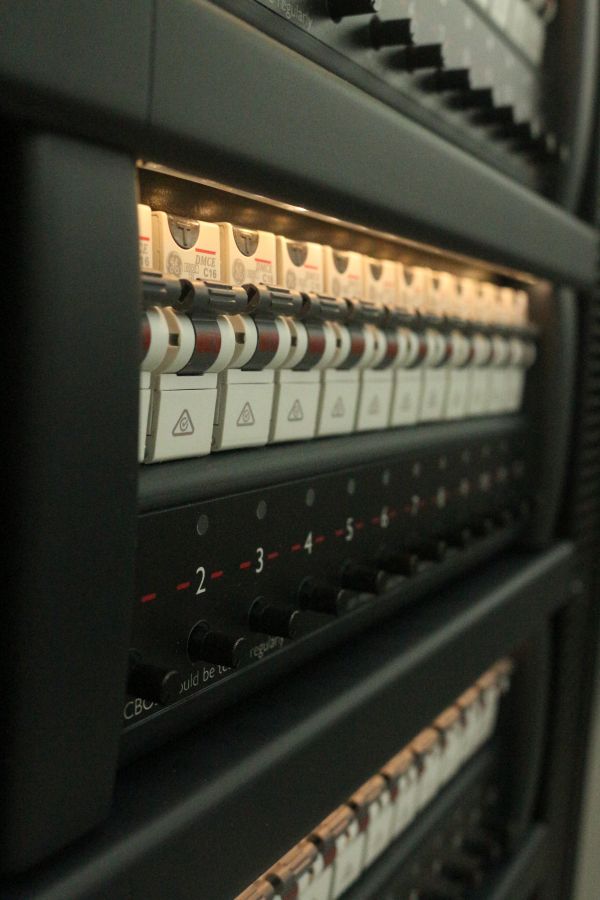

    30mA European-made RCBO on every channel

    Live earth-leakage monitoring

    48 x 16amp channels

    Main and loop breakers adjustable trip current of 125A, 160A, 250A and 320A

    Loop out and System input RCB protection with current and trip delay adjustment

    Multi-pin connector load tester built in

    2 x 1-in 4-out DMX opto splitter

    Build in two Universe Art-net and sACN Node with 4 outlets per universe

    Dedicated FOH 32A RCBO and connector

    USB phone charging point

    RGB rack lighting, backlit switches and illuminated breakers

    Designed to meet new standards in temporary electrical systems

    Weights and Dimensions

    120cm x 62cm x 102cm

    215Kg
