Illustrations

Illustrations

In this section you will find useful technical diagrams.

Some of the documents available in this section are in “PDF format”. This means that the files are compressed so they can be viewed or printed easily.


  • Pearl Upgrade Engraved Switch Caps Drawing

    AD17-0002A.pdf

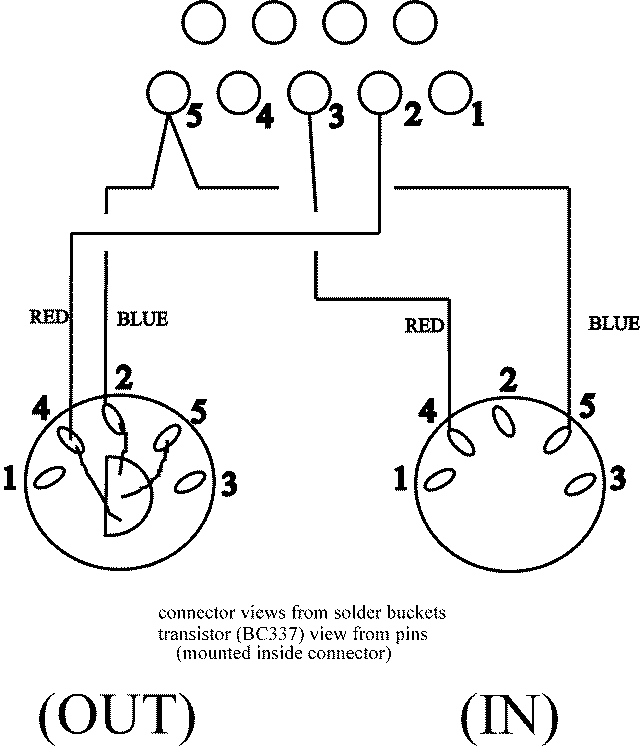

  • Visualiser – Midi port cable

    Parts List
    Part Part No
    2off 180 degree plug rs no. 234-1488
    1off BC337 avo no. 05-02-0006
    1off 9 pin bucket ch female avo no. 03-10-0021
    1off D-Type9 hood (blue) avo no. 03-10-0041
    4m cable arrow no. 038704R (25m)

    Midi port cable
    Avolites Consoles – What fader?

    Console Master Fader Preset Fader
    Diamond 4 08-01-0400 08-01-0400
    Diamond 2/3 08-01-0006(a) 08-01-0200
    Diamond 1 08-01-0006(a) 08-01-0001
    Sapphire 2000 08-01-0400 08-01-0300
    Sapphire 97 late consoles (see note 1) 08-01-0006(a) 08-01-0200
    Sapphire 97 early consoles (see note 1) 08-01-0006(a) 08-01-0001
    Pearl 2000 type B above s/n 1435 (see note 2) 08-01-0300 08-01-0200
    Pearl 2000 type A before s/n 1434 (see note2) 08-01-0200 08-01-0200
    Azure 2000 Touch 08-01-0200
    Azure 2000 Shadow 08-01-0300
    QM consoles 08-01-0006(a) 08-01-0001
    80/100 consoles 08-01-0006(a) 08-01-0001
    RQ 30/60 consoles P&G mastering 08-01-0006(a) 08-01-0001
    RQ 30/60 consoles non P&G mastering 08-01-0001 08-01-0001
    Fader types Part Knob
    Narrow 08-01-0200 08-01-002x
    Wide 08-01-0300 08-01-002x
    Ruwido 08-01-0001 08-01-1000
    Sellmark 08-01-0400 08-01-0035
    Black short 08-01-0500 08-01-002x
    P&G 08-01-0006(a) 08-01-0007
    Notes: Knob colours x = 7 red
    x = 8 blue
    1 The fader was changed during but the serial number of the change is unknown. Check inside the console, if the faders are individually mounted then the faders are shown on the early consoles line, otherwise the faders are shown on the late console line! x = 9 white
    2 If the serial number is near the one shown check with Avolites to ensure you are ordering the correct fader, or check the PCB which mounts the faders if it is 1201-4750A then the console is a type A if the console uses a pcb type 1201-4750B then the console is type B

  • MAP Eurocard

    Avolites MAP Eurocards



    There are two types of Eurocards on Avolites products.

    The eurocard at the top is the ‘old type’ MAP5000A whilst the one at the bottom is the ‘new type’ MAP5000:


  • Riggers Remote Wiring Detail

    Riggers Remote.pdf

  • Pearl 2000 Overlay

    Pearl 2000.pdf

  • Boris motherboards

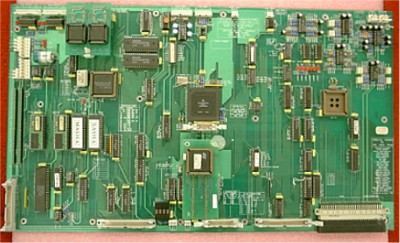

    • Boris 1 motherboard picture

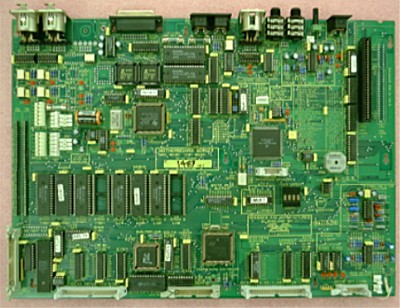

    • Boris 2 motherboard picture

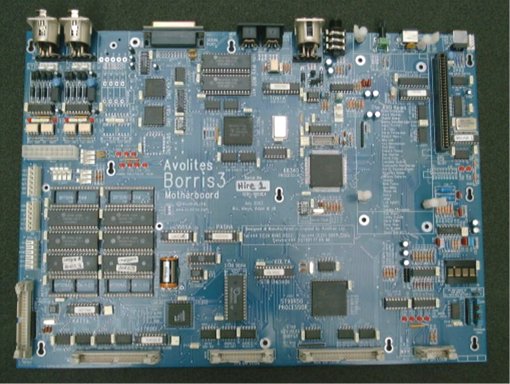

    • Boris 3 motherboard picture

  • Boris Motherboard Links

    • Boris 3 motherboard program and wipe all links
    • Boris 2 motherboard program and wipe all links

  • Linking out the Grand Master on a Pearl

    • MF4750A type fader pcb
    • F4750B type fader pcb

    Once the modification has been done, position the Grand Master Fader so that it at Full.


  • Borris I Motherboard – Wiring Detail

    • Borris 1 DMX Output wiring
    • Borris 1 Serial Port wiring
    • Borris 1 MIDI Port wiring
    • Borris 1 Reset switch wiring
    • Borris 1 DMX Input wiring
    • Borris 1 Sound to Light wiring

  • Floppy Disk Drive links

    Download

  • INVC196 Board Fuse Replacement

    Download
